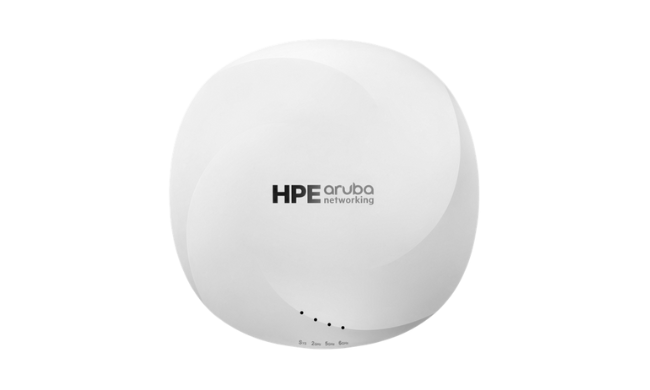

Aruba AP-615 (RW) Campus Access Point - ARUBAPROMO
Aruba | Access Point | Networking
VPN: R7J49A
PLEASE ENQUIRE
• Certifications: UL2043 plenum rating; Bluetooth SIG; Ethernet Alliance (PoE, PD device, Class 4); Wi-Fi Alliance (WFA): Wi-Fi CERTIFIED a, b, g, n, ac, Wi-Fi CERTIFIED 6E (ax, 6 GHz), WPA, WPA2 and WPA3 Enterprise with CNSA option, Personal (SAE), Enhanced Open (OWE), WMM, WMM-PS, W-Fi Agile Multiband, Wi-Fi CERTIFIED Location™
• Input voltage: The AP supports direct DC power and Power over Ethernet (PoE) on port E0
• Regulatory: AP-615 (all models): APIN0615, FCC/ISED, CE Marked, RED Directive 2014/53/EU, EMC Directive 2014/30/EU, Low Voltage Directive 2014/35/EU, UL/IEC/EN 62368-1, EN 60601-1-1, EN60601-1-2
• Wi-Fi antenna: AP-615: Integrated downtilt omni-directional antennas for 2x2 MIMO with peak antenna gain of 2.8 dBi in 2.4 GHz, 4.5 dBi in 5 GHz and 4.5 dBi in 6 GHz.
• Connectivity, standard: Wi-Fi 6E (802.11ax)
• Ports: E0: Ethernet wired network ports (RJ-45), DC power interface: 12 Vdc (nominal, +/- 5%), USB 2.0 host interface (Type A connector), Bluetooth Low Energy (BLE5.0) and Zigbee (802.15.4) radio, Visual indicators (four multi-color LEDs), Reset button: factory reset, LED mode control (normal/off), Serial console interface (proprietary, micro-B USB physical jack), Kensington security slot
• Mounting: A mounting bracket has been pre-installed on the back of the AP. This bracket is used to secure the AP to any of the mount kits (sold separately); see the 610 Series ordering guide for details.
• Power consumption: Maximum (worst-case) power consumption: DC powered:12.5W/18.2W, POE powered: 14.7W/20.9W
• Radio coverage: Indoor, dual-radio/tri-band 2.4 GHz, 5 GHz and 6 GHz (dual concurrent) 802.11ax 2x2 MIMO
• Detailed product description: HPE Aruba Networking 610 Series Access Points are designed to take advantage of the 6 GHz band using two radios that can deliver comprehensive tri-band coverage in a multi-AP environment and better meet the growing demands of Wi-Fi due to increased use of video, growth in client and IoT devices, and expanded use of cloud.
• Weight: 0.72 kg (1.59 lb)
• Dimensions: 5.1 x 20.1 x 18.3 x cm (2 x 7.9 x 7.2 in)
