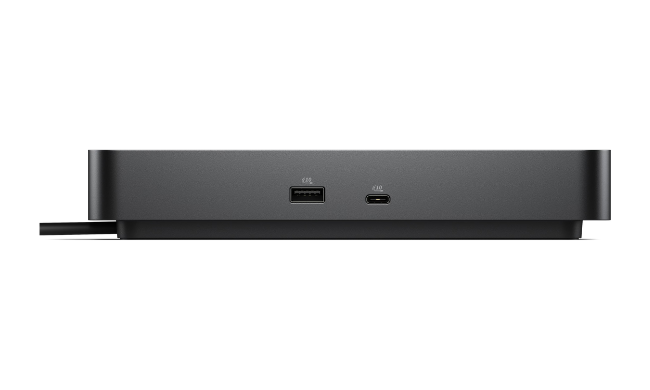

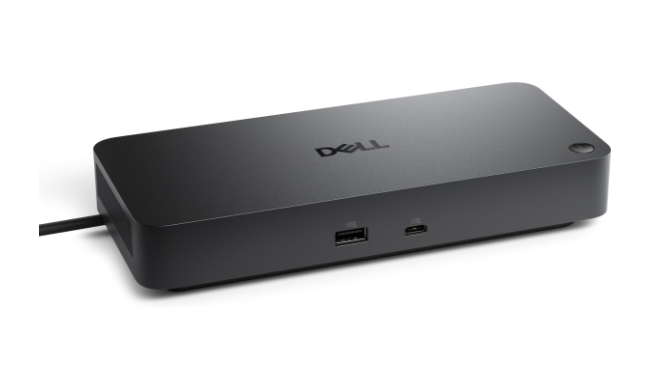

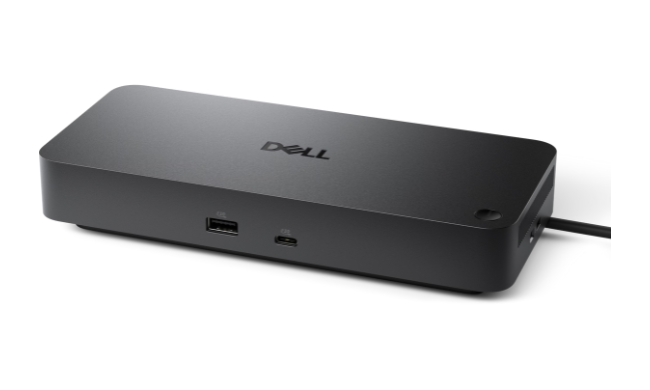

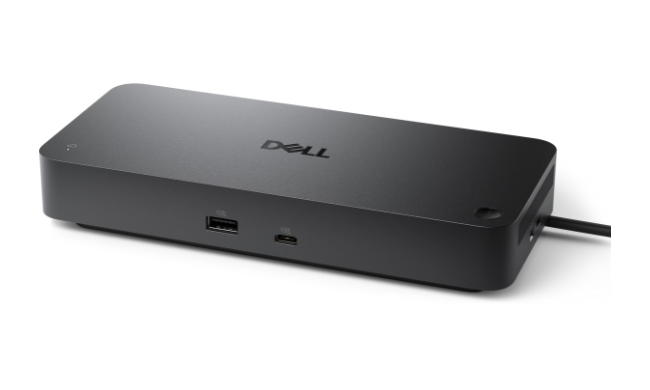

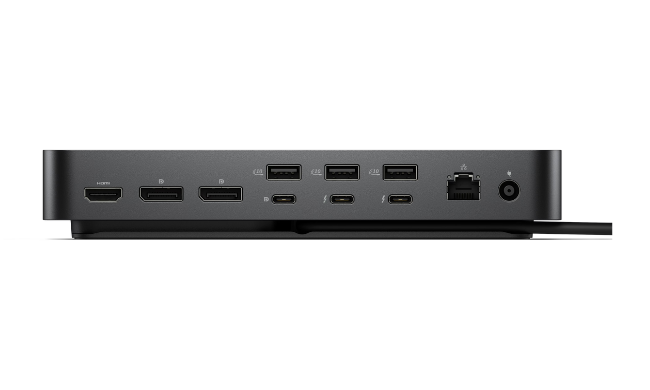

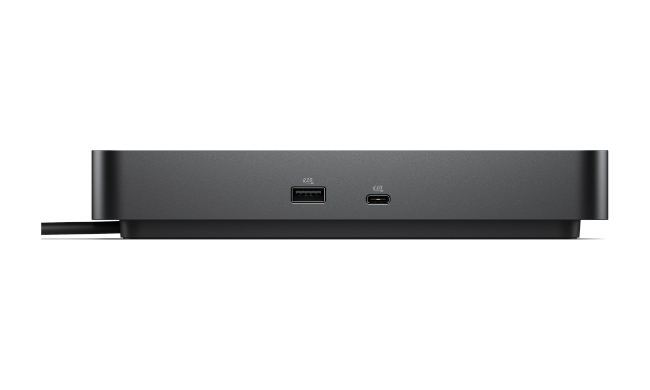

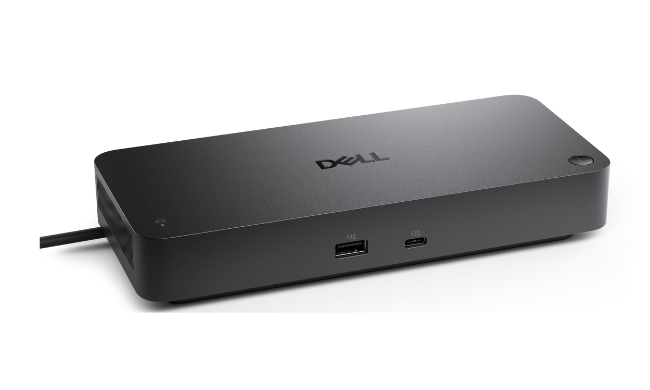

Dell Pro Thunderbolt 5 Smart Dock SD25TB5
Dell CSG | Accessories | Docks and Stands
VPN: 210-BSJC
S$548.00
• Connectivity Technology: Wired
• Device Supported: Notebook
• Cable Length: 83 cm
• Features: Power Delivery Pass-through, LED Power Indicator
• Management Features: WLAN to LAN Switch, Port Disablement, Dell Command Update (DCU), Intel AMT over Thunderbolt with select Intel vPro PCs, Kernel Direct Memory Access (DMA) Protection, Wake-on-LAN, Dock Power Button Sync, PXE Boot, MAC Address Pass-through
• Number of Displays Supported: 4
• Screen Mode Supported: 4K @ 120Hz, 8K @ 60Hz, 6K @ 60Hz, 5K @ 60Hz, 4K @ 60Hz, WQHD @ 60Hz, QHD @ 60Hz
• Supported Resolutions: 2560 x 1440, 3440 x 1440, 3840 x 2160, 5120 x 2160, 6144 x 3456, 7680 x 4320
• Maximum Data Transfer Rate: 1.25 GB/s
• Security Slot Type: Noble Wedge Security Slot, Kensington Security Slot
• Power Delivery Details: 4 x USB-A 3.2 Gen 2 (4.5W each), 1 x USB-C 3.2 Gen 2 (15W), 1 x USB-C Multi-function DisplayPort (7.5W), 2 x Thunderbolt 5 (15W each), All deliver power with or without PC
• Power Delivery: 240W (non-Dell Systems), 300W (Dell Systems)
• Video Resolution Details: QHD - 60 Hz (Quad Display), WQHD - 60 Hz (Triple Display), 4K - 60 Hz (Dual Display), 5K - 60 Hz (Single Display), 4K - 60 Hz (Quad Display), 4K - 60 Hz (Triple Display), 6K - 60 Hz (Dual Display), 4K - 120 Hz (Triple Display), 8K - 60 Hz (Single Display), 4K - 120 Hz (Quad Display)
• Ethernet Technology: 2.5 Gigabit Ethernet
• Host Interface: Thunderbolt 5
• Total Number of USB Ports: 6
• Number of USB 3.2 Gen 2 Type-A Ports: 4
• Number of USB Type-A Ports: 4
• Number of USB Type-C Ports: 2
• USB Type-A: Yes
• USB Type-C: Yes
• USB Type-C Detail: 1 x USB-C 3.2 Gen 2 Multi-function DisplayPort 2.1, 1 x USB-C 3.2 Gen 2 (10 Gbps)
• Network (RJ-45): Yes
• Number of DisplayPorts: 2
• DisplayPort: Yes
• DisplayPort Version: 2.1
• Number of HDMI Ports: 1
• HDMI: Yes
• HDMI Version: 2.1
• Thunderbolt: Yes
• Thunderbolt Ports Quantity: 2
• Operating System Supported: ChromeOS 141, Red Hat Enterprise Linux 9.7, macOS, Ubuntu 24.04, Windows 11, Windows 10
• Maximum Power Supply Wattage: 330 W
• Power Source Type: Power Adapter
• Height: 205 mm
• Width: 90 mm
• Depth: 35.3 mm
• Weight (Approximate): 632 g
• Package Contents: SD25TB5 Docking Station, Power Adapter, Power Cord, Documentation (Quick Start Guide, Safety, Environmental, and Regulatory Information)
• Kensington Security Slot: Yes
